Spatial Transcriptomics: A Window into Disease

spatial transcriptomics 10x genomics readcoor

The emerging spatial transcriptomics field is letting researchers map out gene expression in tumor and brain samples. How could this change the way we treat disease?

DNA and RNA sequencing technology has undergone a revolution in the last decade, with companies working to provide ever cheaper and faster ways to explore our genetics.

This stride forward in sequencing has, in turn, led to the development of personalized medicines to treat a range of diseases such as cancer. For example, physicians can plan the most appropriate immunotherapy for a patient based on DNA and messenger (m)RNA extracted and sequenced from a tumor sample.

However, this sequencing approach has its limits.

You want to look at not just what immune cell types are there, but where the immune cell types are, what immune cells are present, and are they actually invading the tumor or not,” said Richard Terry, founder of the US company ReadCoor, which was acquired by the California-based firm 10X Genomics last year.

This rich complexity is impossible to get at once you start destroying that rich contextual information.

There are already methods for visualizing mRNA sequences on tissue sections, such as RNAscope, an in situ hybridization technology developed by the US company Advanced Cell Diagnostics. However, the maximum number of different genes you can analyze at a time with this technique is limited.

People like to use it and it’s very quantitative and sensitive, but you can only look at three or four genes,” explained Malte Kühnemund, Director of R&D at 10X Genomics. “What you really need is a method that can look at 50-200 genes.”

In a 2013 Nature study, a research group led by Mats Nilsson in Stockholm, Sweden, reported a way to fuse the spatial information of in situ hybridization with the detail of transcriptomics in a technique called spatial transcriptomics, or in situ sequencing. Other groups in Stockholm developed their own versions of the technology, and the city became a European hub for spatial transcriptomics.

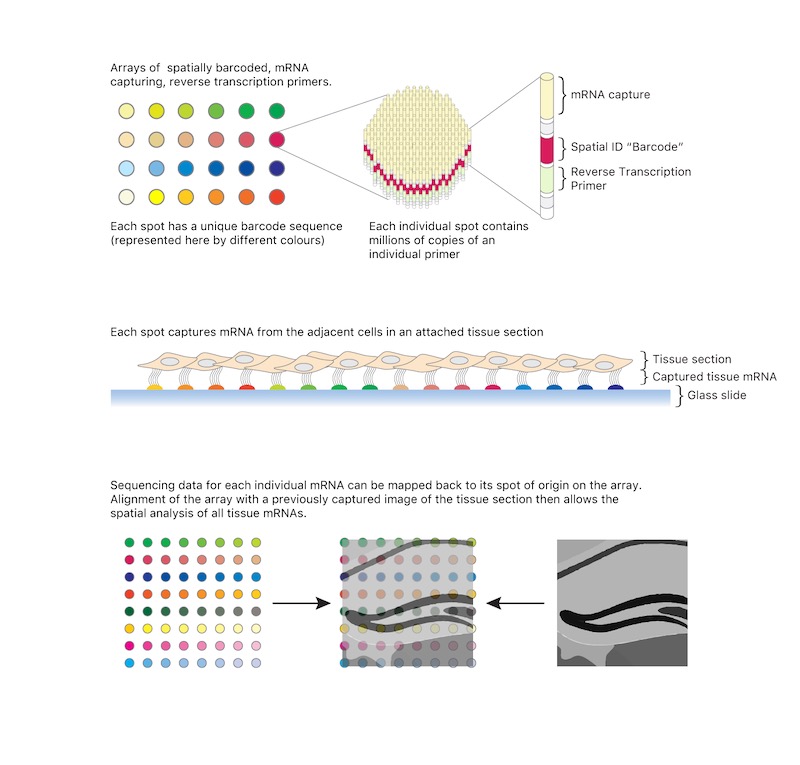

One spatial transcriptomics method — published in Science in 2016 — involves rows of ‘spots’ on a microscope slide that are made of millions of DNA primers and unique DNA ‘barcodes.’ A tissue sample is then placed on the slide and each primer sticks to a target mRNA sequence nearby in the tissue section. The captured mRNA sequences are then converted into DNA, and each sequence also has the location barcode included. The researchers can then use the barcode to map the mRNA onto the part of the tissue where it was captured.

Spatial transcriptomics nature cc
An example of a spatial transcriptomics procedure.

This technique can be used to track a lot more genes than previous spatial techniques. Along with other spatial sequencing technology such as spatial genomics and proteomics, it has advanced the Human Cell Atlas, an international collaboration aiming to functionally map the cells of the human body.

Swedish companies have drawn a lot of attention in the spatial transcriptomics space. For example, the Stockholm-based firm Spatial Transcriptomics was purchased by 10X Genomics in late 2018. And last year, 10X Genomics snapped up another Stockholm startup, Cartana, which was co-founded by Kühnemund.

If you analyze a sample with us, you get 100 genes,” Kühnemund said regarding Cartana’s technology. “It’s a lot cheaper than doing 30 different in situ hybridizations.

There is a growing wave of European startups working on their own forms of spatial sequencing. The Swedish company Single Technologies closed a €5M Series A round in December to bankroll a high-throughput method. Later that month, Resolve Biosciences launched in Germany with a Series A worth almost €20M to fund the development of spatial sequencing technology with a subcellular resolution.

Outside of Europe, other players in the spatial sequencing sector include NanoString and the recently launched Acuity Spatial Genomics in the US.

Most spatial transcriptomics technology is marketed for research purposes, and a number of developers are also targeting it at diagnostics in the future. One of the biggest applications is immuno-oncology.

Currently, spatial transcriptomics companies offer immunotherapy developers the ability to map out gene expression in tumor samples and discover new drug targets or biomarkers. However, this is only the start of what the field could achieve in the next ten years in immuno-oncology.

Another intriguing application could be as a diagnostic tool in personalized medicine. This is because each tumor has a unique microenvironment that can suppress immune cells, and block the effects of particular immunotherapies such as checkpoint inhibitors. Knowing more about the microenvironment, such as the checkpoint inhibitor targets on immune cells, could let physicians choose more appropriate treatments for patients.

Even when you look at those pathways, they are highly structured throughout the tissue,” Terry told me. “You have to look at individual cell morphology in order to even make the right diagnostic based on that test.”

However, this personalized medicine approach is still in development, as a lot of work still needs to be done in validating the technology as a diagnostic tool.

transcriptomics spatial cartana readcoor nanostring

Another hot area for spatial transcriptomics is neurology research, a historically difficult field due to the complexity of the human brain.

If you look at a group like Roche, they’re very focused on immuno-oncology now, but their roadmap to the next few decades is to get deeply into improving brain health and brain disease through therapeutics,” noted Terry. “But to do that, you need a much deeper understanding of how the human brain works today.

Neurological conditions currently being studied by spatial transcriptomics companies include neurodegenerative diseases, where NanoString, for example, hunts for marker genes for these conditions. Furthermore, spatial transcriptomics can also help pharmaceutical clients to study drug targets in the brain.

You can actually map out where the target is in the brain, for example, and not only the approximate location inside the organ, but also in what type of cells,” Kühnemund said. “You actually now know what type of cells you are targeting. That’s completely new information for them and it might help them to understand side effects and so on.

Another potential application of the technology is viral infection. NanoString’s technology has been used to map out lung damage caused by Covid-19, which could lead to new therapies. Additionally, spatial sequencing could shed light on how HIV is able to attach to immune cells and enter a latent stage.

That’s not well understood for most viruses – what environmental factors actually trigger that or how do they come back out of that,” Terry said.

The technique of spatial transcriptomics in some ways resembles the aims of single-cell sequencing, a type of sequencing that can provide much more detail about cells than bulk sequencing. While Terry questioned the hype of single-cell sequencing, Michael Schnall-Levin, Founding Scientist at 10X Genomics, believes that the two techniques are actually complementary.

Single-cell sequencing is critical for defining the ‘what’ in a sample — what the different cell types and states are, how they are defined, and how they differ,” he explained. “Spatial transcriptomics is critical for defining the ‘where’ — where cells are located, how cells interact, and how cell states differ across a tissue.

transcriptomics spatial cartana readcoor nanostring brain

While spatial transcriptomics has a lot of promise, it is still at an early stage because of the sheer amount of scientific advances needed to develop it in the first place.

The problem was you needed the entire field of next-generation sequencing to become mature in order to then go back and start to leverage some of those techniques and methods to deliver in-situ sequencing,” Terry said. “I think that’s what took the field so long.

In addition, users can be easily overwhelmed by the different forms of spatial transcriptomics in development around the world, all with unique advantages in aspects such as spatial resolution, throughput, range of genes detected, and more.

The risk could be that people just adopt the one that is most marketed and then realize, ‘Meh, that’s not really great. I can’t get the answer I need,’ and get frustrated about it and not want to invest in something else,” Kühnemund said.

However, the field is moving fast, and could one day be combined with other emerging technologies such as AI to improve diagnostics.

I think it’s going to be tricky for pathologists to look at that data,” Kühnemund told me. “I think this will go hand in hand with the digital pathology revolution where computers are doing the analysis and they spit out an answer. That’s a lot more precise than what any doctor could possibly do.

As spatial transcriptomics branches out into more fields of medicine, the market is expanding fast. This could, in turn, make the technique more mainstream and better integrated into future healthcare.

We believe there will be incredible technological leaps in the next ten years that will enable new biological understanding that’s completely impossible today,” Schnall-Levin said.
